Quick Details

  • Application: Laser Marking
  • Condition: New
  • Laser Type: Fiber Laser
  • CNC or Not: No
  • Cooling Mode: Air Cooling
  • Control Software: EZCAD
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
  • Working Accuracy: 0.003mm
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Hua Rong
  • Model Number: BLP-A
  • Power(W): 10W/20W/30W/50W
  • Certification: CCC, CE, ISO
  • Type: Portable type
  • Usage: Industrial use
  • Laser Wave length: 1064nm
  • Q-frequency: 20KHz~30KHz
  • Laser Module Life: >100000hours
  • Optional Marking Area: 50mm*50mm / 100mm*100mm / 200mm*200mm
  • Marking Format: Graphics,Text,Bar Codes,Two-dimensional Code,

Packaging & Delivery

Packaging Details Wooden case for safe sea shipping
Delivery Time 5-7 days after receiving deposit
Product Description

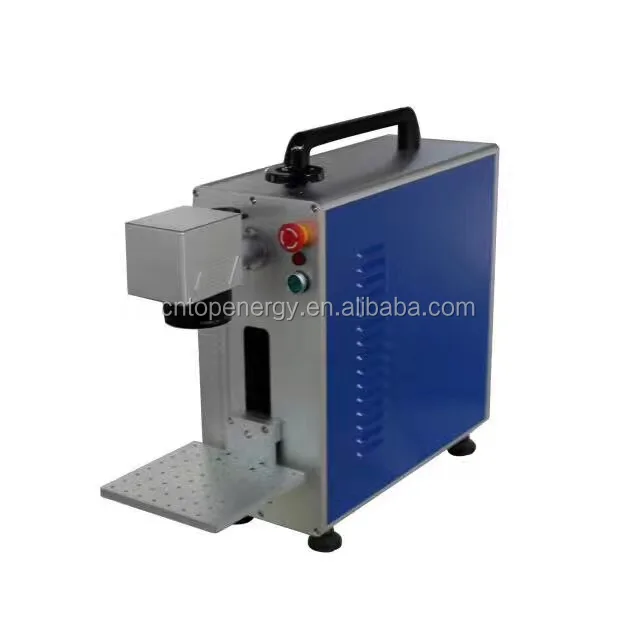

Small Laser Marker 10W-50W Portable Mini Metal Fiber Laser Marking 3D Engraving Machine price

 Advantages:



1.Best Marking Effect: the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such

as mark on IC chip.

2.Deep Marking: Fiber laser can make deep marking up to 1.0mm on stainless steel and aluminum.

While YAG and Diode marking only could mark 0.2mm-0.3mm. So it’s suitable for the industries

which has high requirement to the depth and accuracy.

3.Higher Accuracy: fiber laser can reach up to 0.001mm precision, while diode only 0.01mm.

4.10 Years Long lifetimeWe used the fiber laser module made by Germany IPG technology, the

 lifetime of the fiber laser device is 10 thousand hours, so the machine can be used for 8-10 years.

As for diode laser module is 2 thousand to 3 thousand hours and only can be used for 1-3 years.

5.No consumables: Fiber laser machine can be used for 8-10 years with any consumables.

6.No need to adjust the laser pathfiber laser beam comes out from the fiber device directly, so

no need to adjust the laser optical path. While Diode laser need to adjust the laser optical path

regularly.

7.Free of Maintenance: Fiber laser machine can be used free of maintenance. Diode laser need

to change the diode module and recycle water regularly.

8.Use Integrated Air Cooling: Fiber laser uses integrated air cooling, and the cooling effect is

excellent than the water cooling used in Diode and YAG laser. Also, air cooling no need to maintain,

save many cost and energy.

9.Low Power Consumption: low cost, only 0.5kw/hour. While Diode is 3kw/hour, and YAG is

5 kw/hour. Fiber laser is more economized and environmental.

10.Small and compact: the volume of fiber laser marking machine is small, only 0.5 M2

It can be put in desk and easy to install.

Machine Application Scope and Material:

  1. Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
  2.  Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
  3. Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
  4. Dishware ,food ,drinking,smoking and alcohol,etc.



After- sales service for fiber laser marking machine:

We have 2 years guarantee for the machine .

We will enclose an " English Instruction Book", "English Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.


1. Ink and paint; phone battery labels, panels, phone key-press, small daily necessities ,accessories and so on.
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke



Model

HRBLP-10

HRBLP-20

HRBLP-30

Laser Power

10W

20W

30W

Laser Wave length

1064nm

Q-frequency

20KHz~30KHz

Divergence

0.3mard

Marking Range

110*110mm /175*175mm

Minimum Line Width

0.02mm

Minimum Character

0.15mm

Marking Depth

0~0.5mm

Engraving Line Speed

≤7000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics,Text,Bar Codes,Two-dimensional Code,

Automatically Marking theDate,Batch Number,

Serial Number,Frequency,etc.

Graphic Format Supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

Working Voltage

220V±10%/50Hz/4A

Unit Power

<0.5kw

Use of the Environment

Clean and Dust Free or Dust less

Working Condition:Humidity

5%-75%,Free of Condensed Water

Laser Module Life

>100000hours

Optional Marking Area

50mm*50mm / 100mm*100mm / 200mm*200mm

Optional (Not free of charge)

Rotary Device, Moving Table, other customized Automation



1.Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2.Maintenance Free, save equipment and worker cost;
3.Imported Galvonometer, Higher precision,faster speed;
4.Higher photoelectric conversion efficiency, Low power consumption;
5.Red light preview, more accurate and reduce positioning time;
6.Laptop with Powerful marking software;
7.User friendly software interface, easy operation;
8.Set and deal different layers graphic separately;
9.Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10.Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.



Product Type

Fiber Laser Marking Machine

Marking Material

Both metals and some non-metals

Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)

Non-metals: plastics, rubber, resin, carton box, etc.

Applied Industries

electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.



Marking Content

logo, character, serial number, bar code, data matrix

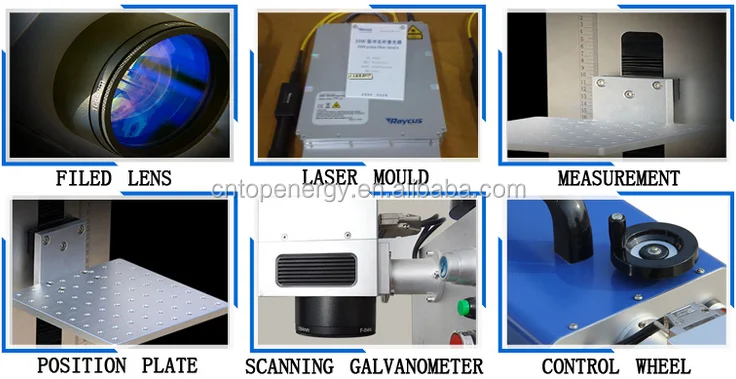

 Main Parts

Fiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer

Core Parts & Brand & Lifetime

Core Parts: Fiber Laser Source

Brand: IPG, SPI, Raycus, Max, JPT (optional)

Lifetime: 100, 000 hours

Cooling Mode

Air Cooling

Continuous Working Hours

22 hours

Marking Software

English Version

Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc.

Easy Operation

With Powerful Function

Certification

CE, FDA



Packaging & Shipping
